Automated Cardboard Handling Conveyor System
Brand :Newkuani
Product origin :China
Delivery time :20days
Supply capacity :100sets/month
Newkuani, as an expert in providing intelligent, economical, and efficient overall solutions for logistics and transportation systems, can customize logistics and transportation solutions according to the actual factory conditions of customers, provide logistics equipment that best meets the needs of equipment users, and meet customers' needs for intelligent logistics systems Demand for differentiation.
Cardboard turning machine：
1) Main parameter
· Module plastic belt size: 3000mmL*2400mmW*350H(±30);carrying capacity:≤300kg/m²;
· Cardboard size:MAX:2500mmW*2400mmL*1800mmH;
· Structure: turning part, plastic belt conveyor, block device, pressing device etc.
· Motor power: 2.2 kW*2 (plastic belt conveyor) turning part: 4kw; Motor brand: BONENG; Inverter：schneider;
· Belt speed: Max30m/min, 1500mmH cardboard turning period:about 50S.
· Turing part:slewing bearing and gearbox driven.
· Belt conveyor:long driven roll to drive multiple belt conveyors;
· Block device: Multi-link type, pneumatic driven rod to prevent cardboard leaking.
· Pressing device:Hydraulic driven.
2) Function: Used to turn the cardboard up as a whole without damage the sheet.

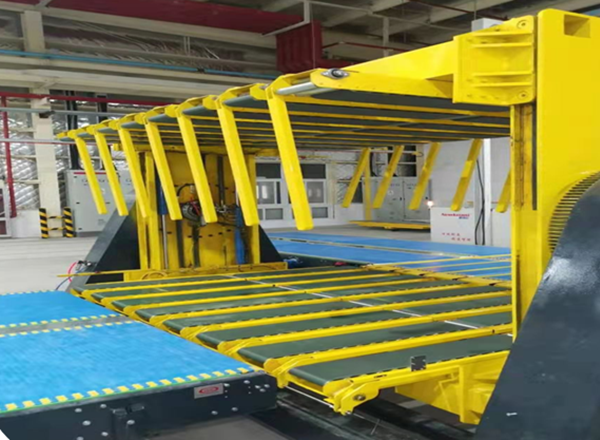

3) Outline picture
